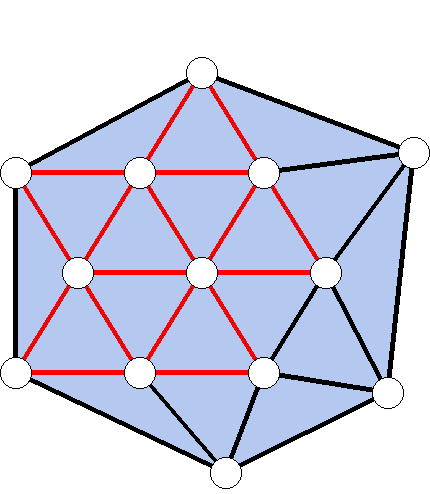

Configuration C5 of the 6-complex

 MDS:  Version 4.33, 3/24/99   run # 2570
 triangulation 4
 13 Vertices
 0:   (211,300)
 1:   (149,400)
 2:   (273,400)
 3:   (335,300)
 4:   (273,200)
 5:   (149,200)
 6:   (87,300)
 7:   (235,500)
 8:   (397,420)
 9:   (423,180)
 10:   (211,100)
 11:   (25,200)
 12:   (25,400)
 18 Triangles:
0: 0 1 2
1: 0 2 3
2: 0 3 4
3: 0 4 5
4: 0 5 6
5: 0 6 1
6: 7 1 2
7: 8 2 3
8: 9 3 4
9: 10 4 5
10: 11 5 6
11: 12 6 1
12: 2 7 8
13: 3 8 9
14: 4 9 10
15: 5 10 11
16: 6 11 12
17: 1 7 12
 6 boundary edges:
 0: 7 8
 1: 8 9
 2: 9 10
 3: 10 11
 4: 11 12
 5: 7 12
 24 interior edges:
 0: 0 1 --- 2 6
 1: 1 2 --- 0 7
 2: 0 2 --- 1 3
 3: 2 3 --- 0 8
 4: 0 3 --- 2 4
 5: 3 4 --- 0 9
 6: 0 4 --- 3 5
 7: 4 5 --- 0 10
 8: 0 5 --- 4 6
 9: 5 6 --- 0 11
 10: 0 6 --- 5 1
 11: 1 6 --- 0 12
 12: 1 7 --- 2 12
 13: 2 7 --- 1 8
 14: 2 8 --- 3 7
 15: 3 8 --- 2 9
 16: 3 9 --- 4 8
 17: 4 9 --- 3 10
 18: 4 10 --- 5 9
 19: 5 10 --- 4 11
 20: 5 11 --- 6 10
 21: 6 11 --- 5 12
 22: 6 12 --- 1 11
 23: 1 12 --- 6 7
 6 boundary vertices:  7 8 9 10 11 12
 7 interior vertices:  0 1 2 3 4 5 6
  r = 1 d = 1

[24-Mar-1999]
