The specifics used in this example are for a Canon imageRUNNER Advanced C5560i II. The Canon UFR II driver can be downloaded from usa.canon.com. Also, there is a local copy of the driver here (as of 01-Feb-2022).

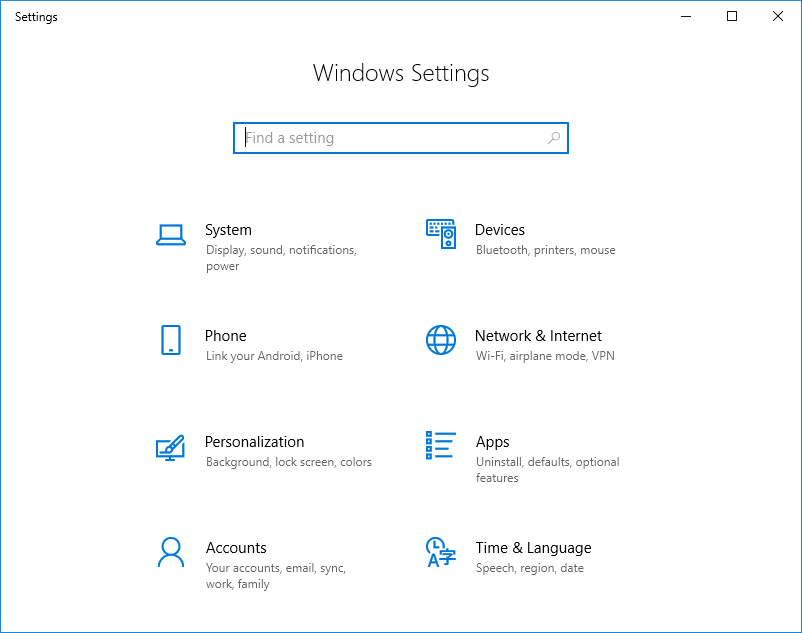

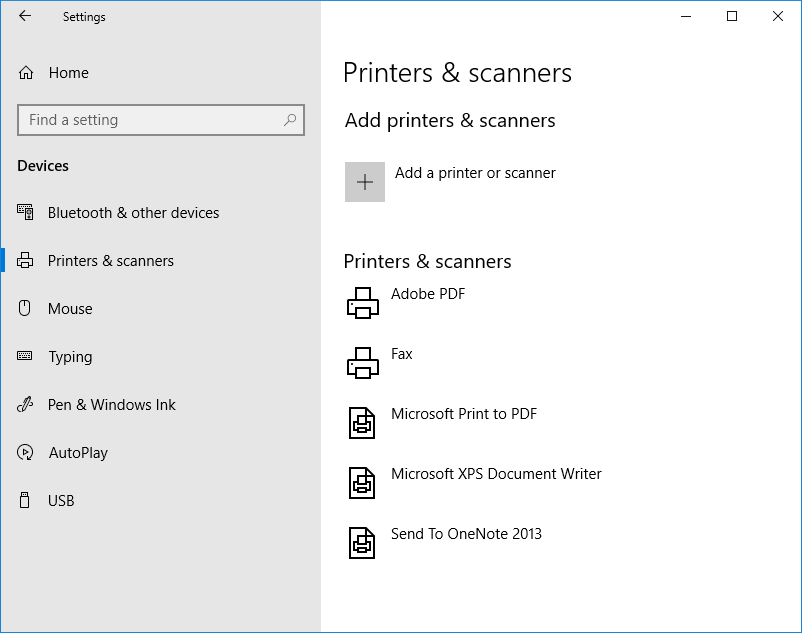

| Open Settings | |
| Add Printer | |

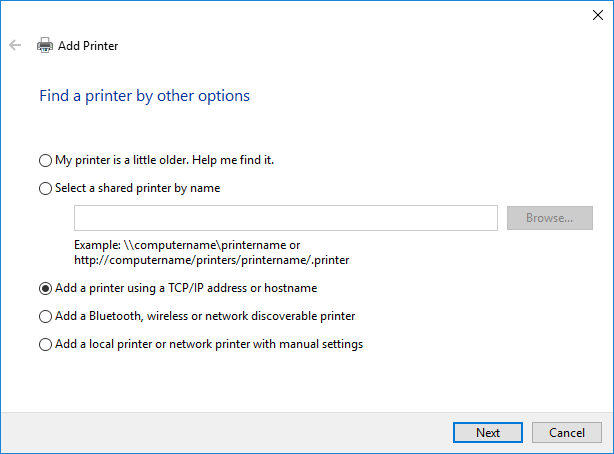

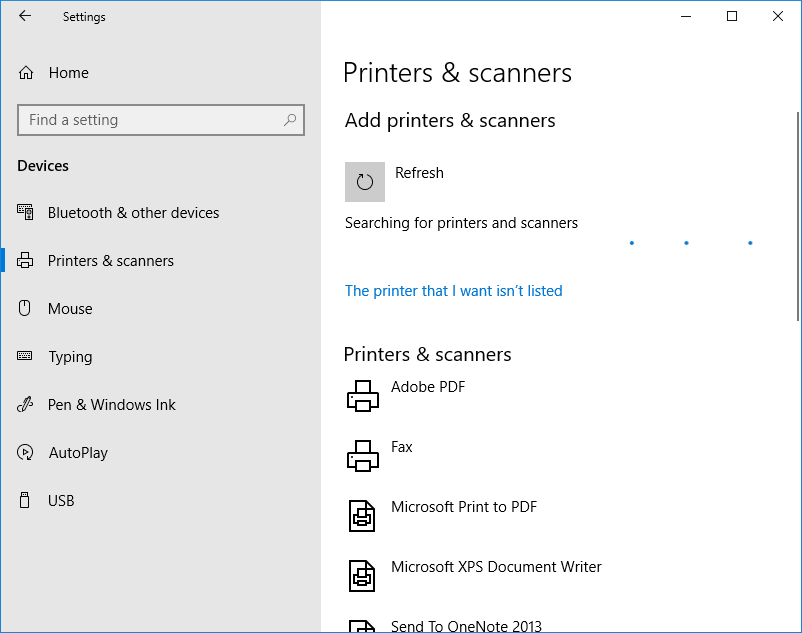

| Select "The printer..." | |
| Select TCP/IP | |

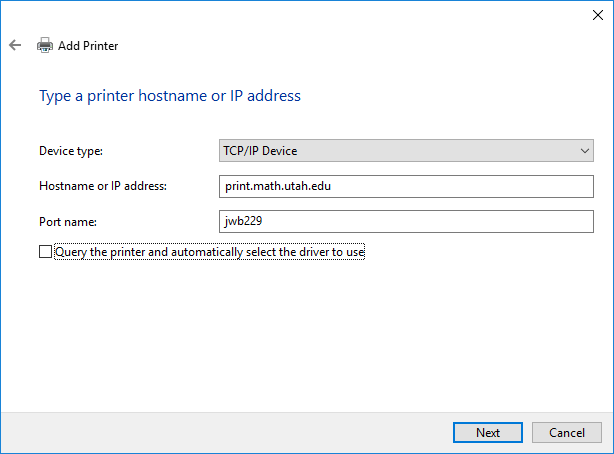

| Select device, host and port | |

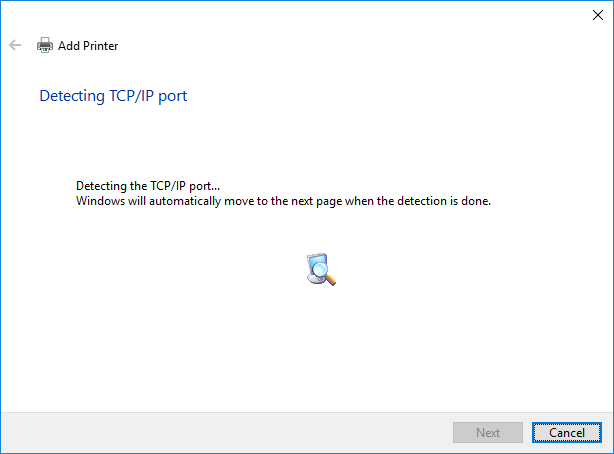

| Wait for Windows... | |

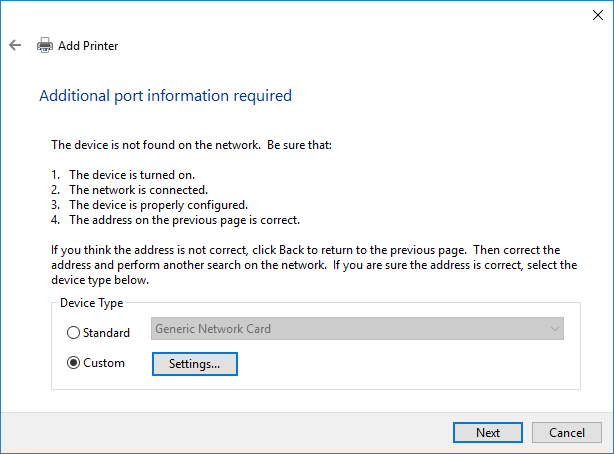

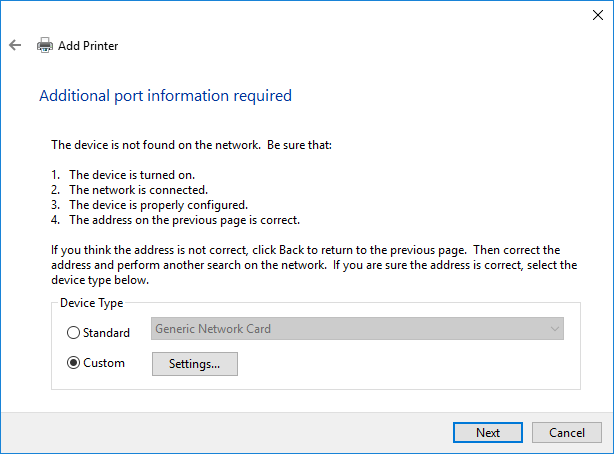

| Select Custom, then "Settings..." | |

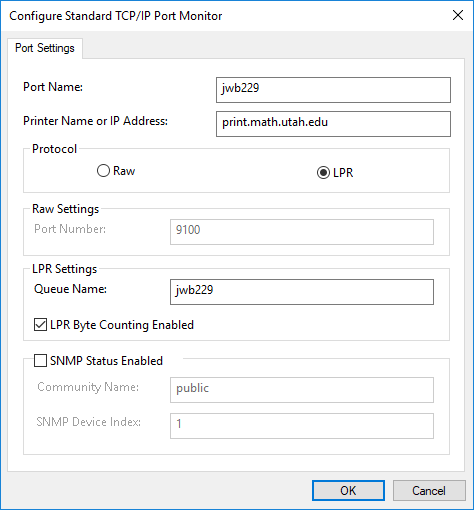

| Select LPR, enter Queue and select "LPR Byte Counting" | |
| Next | |

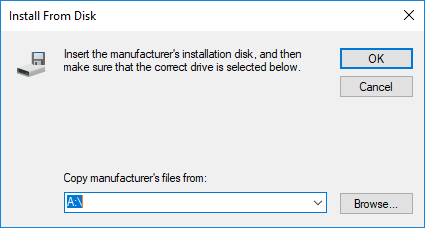

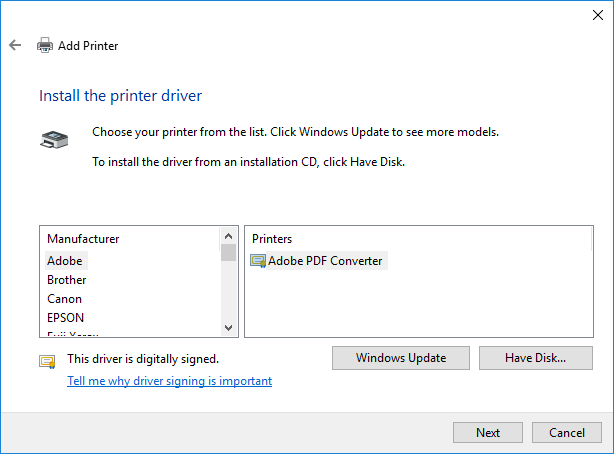

| Select "Have Disk..." | |

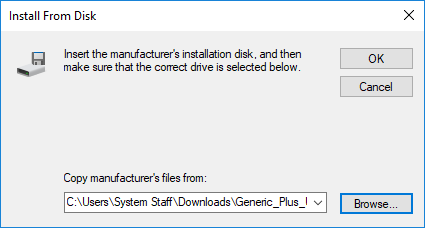

| Select "Browse..." | |

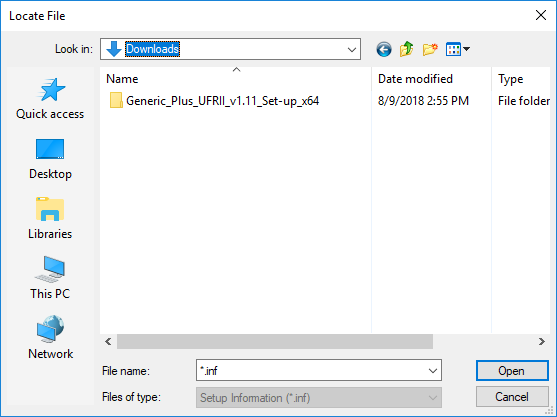

| Navigate to Downloads | |

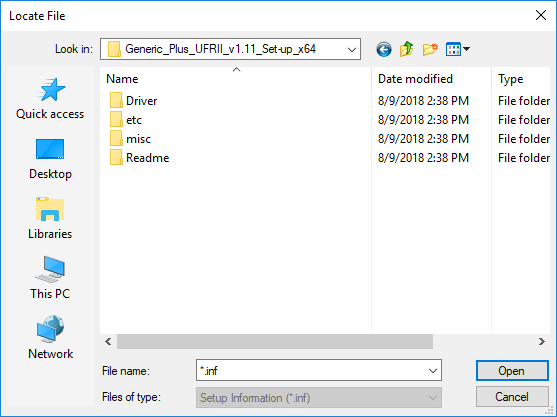

| Navigate to "Generic..." | |

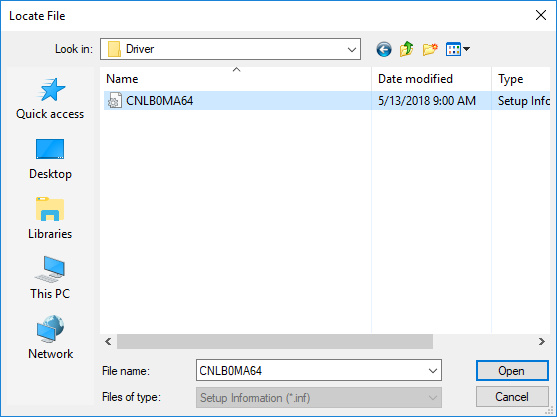

| Navigate to "Driver" and select CNLB0MA64 | |
| Click "OK" | |

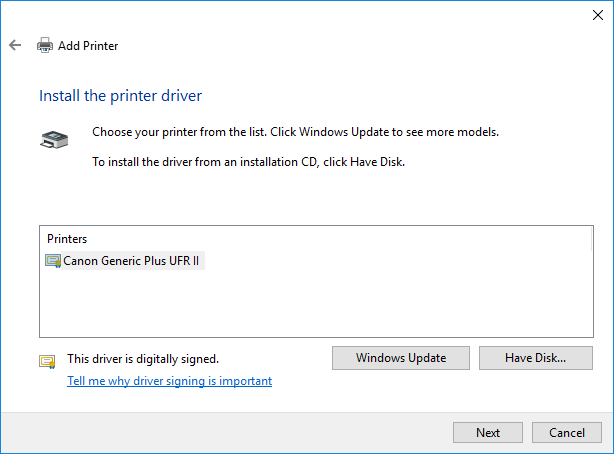

| Click "Next" | |
| Enter local printer name | |

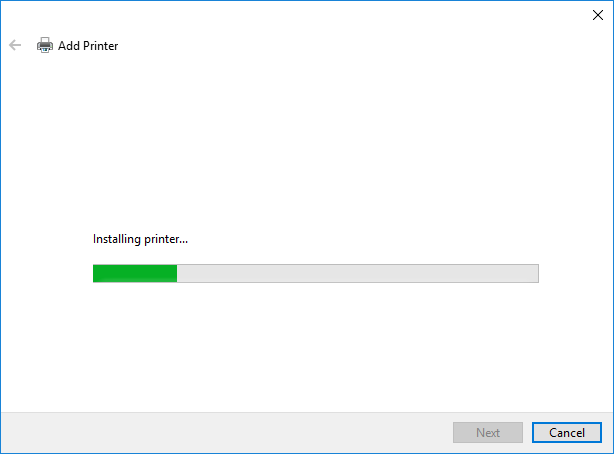

| Wait for Windows | |

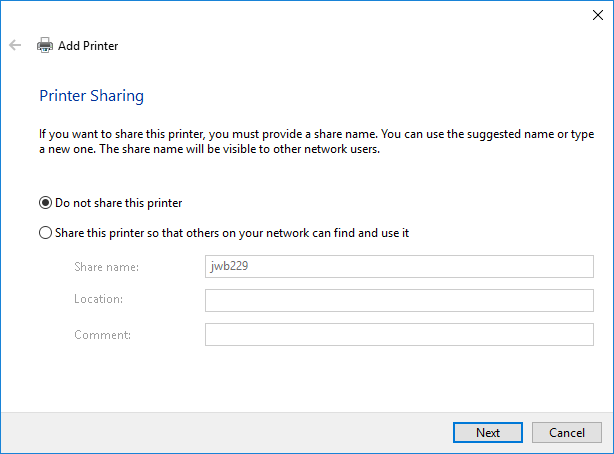

| Select "Do not share..." | |

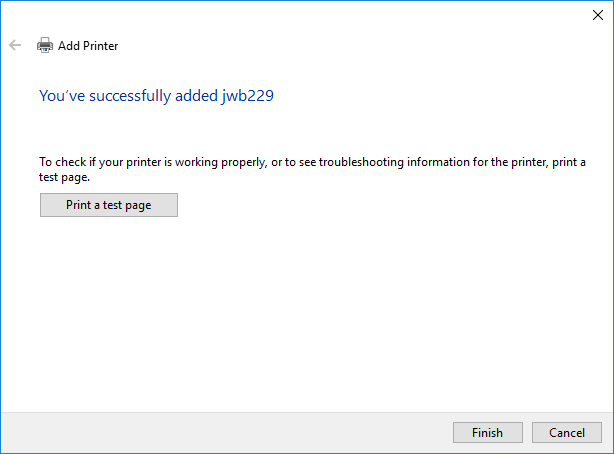

| Click "Finish" | |

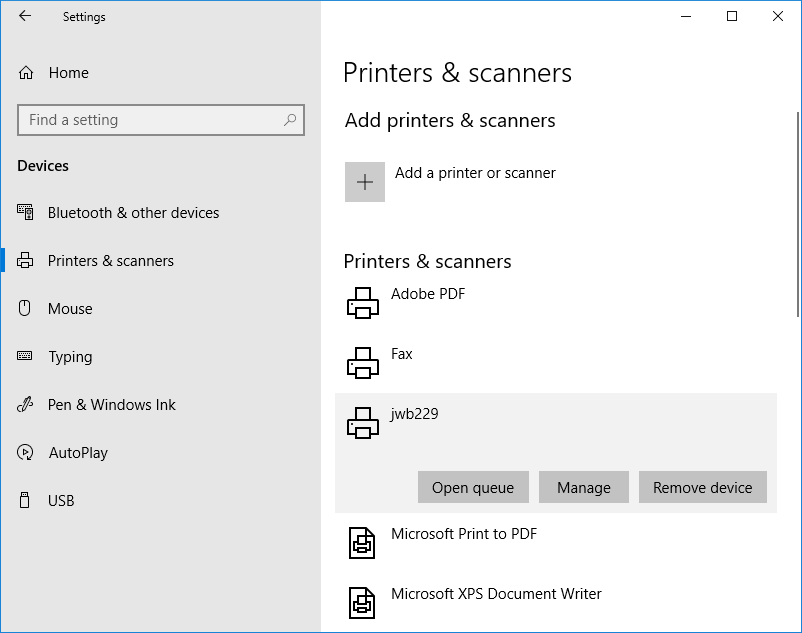

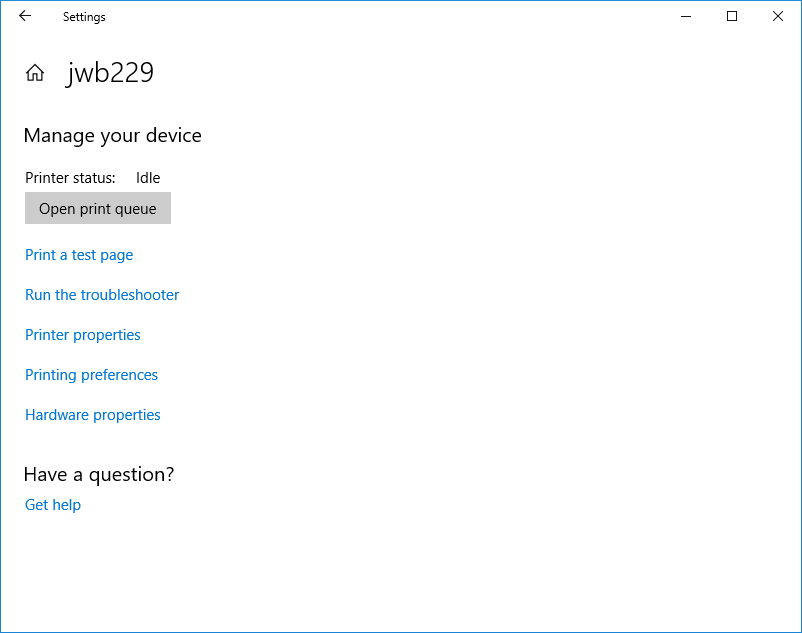

| Select the printer that was just added and "Manage" | |
| Click "Printer properties" | |

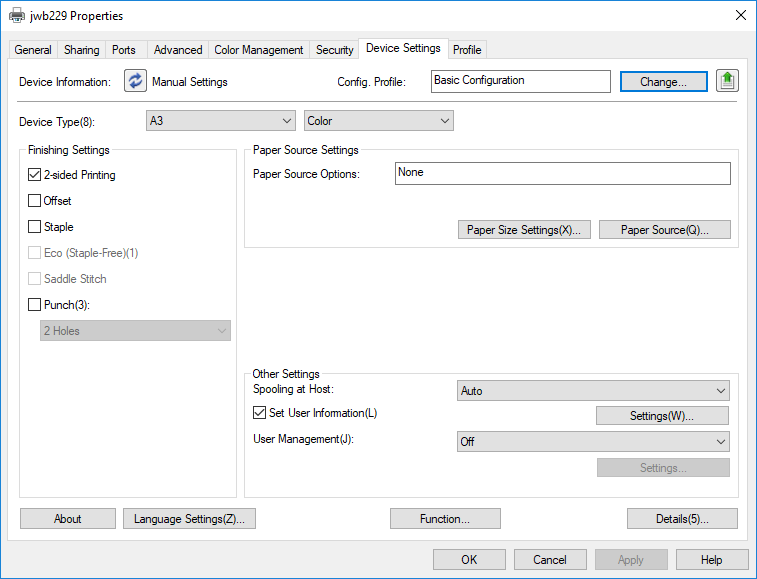

| Select "Device Settings", then "Change" | |

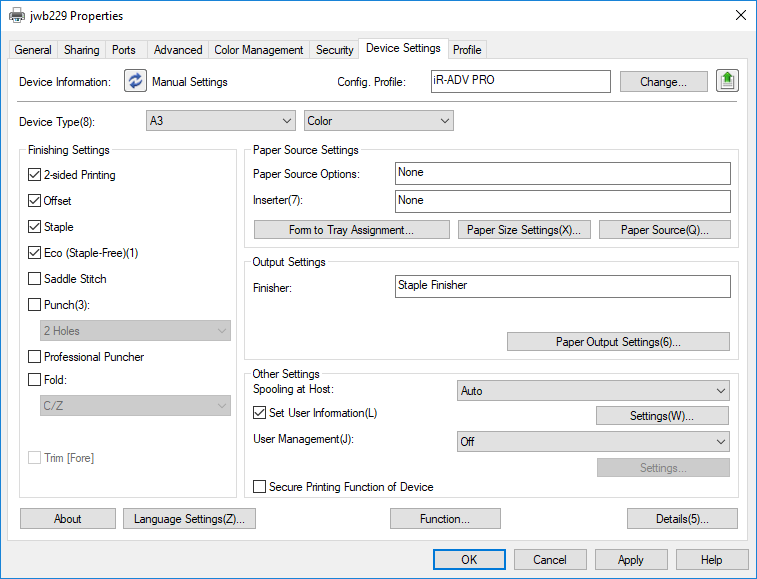

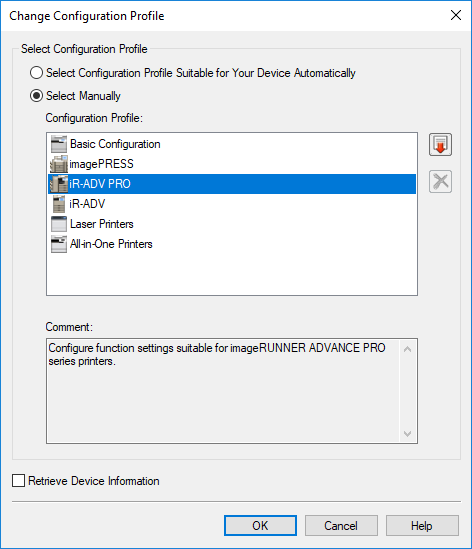

| Click "Select Manually", "iR-ADV PRO", uncheck "Retrieve Device Information" | |

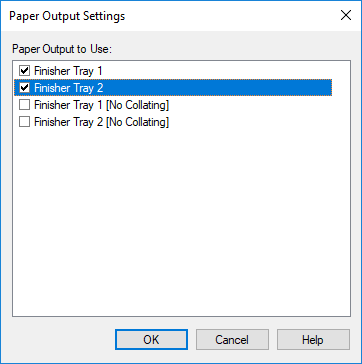

| Select "Paper Output Settings" | |
| Select "Offset", "Staple" and "Eco (Staple Free)" | |
